Multi row three side sealing powder packaging machine
Product model：CY300F/CY600F/CY900F
The automatic multi row three side sealing powder packaging machine is applicable to the automatic packaging of powder or fine particles in pharmaceutical, food, daily chemical, pesticide, hardware products and other industrial products
Such as: food additives, milk powder, bean powder, protein powder, Chinese medicine powder, facial mask powder, pearl powder, coffee powder, pesticide powder, cockroach medicine, health tea powder, glucose powder, soda powder, etc
Such as: food additives, milk powder, bean powder, protein powder, Chinese medicine powder, facial mask powder, pearl powder, coffee powder, pesticide powder, cockroach medicine, health tea powder, glucose powder, soda powder, etc
We can help you find the goods you want by phone
Machine parameters
| Model | CY300F | CY600F | CY900F | |
| Lanes number | 2-4 lanes | 3-10 lanes | 4-16 lane | |
| Capacity | 2--40 / Max.20-40cycle/min/lane | |||
| Bag size | L 50-180mm W:25-75mm | L::50-180mm W:25-100mm | L::50-180mm W:25-110mm | |
| Film width&thickness | Max.300mm,0.07--0.1mm | Max.600mm,0.07--0.1mm | Max.900mm,0.07--0.1mm | |
| Measuring Method | 1.long auger;2.short auger;3.short auger with cup | |||
| Sealing type | 3 side sealing | 3 side sealing | 3 side sealing | |
| Cutting type | 1. Straight cutting;2. Zig zag cutting 3. Round cutting;4. Die-cut | |||
| Power supply | 1N+PE/50HZ/AC220V/380V/3.5kw | 1N+PE/50HZ/AC220V/380V/5.5kw | 1N+PE/50HZ/AC220V/380V/7.5kw | |
| Air consumption | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min | |
| Dimension | 1385*918*2005mm | 1685*1300*2005mm | 1700*1600*2500mm | |
| Weight | 400kg | 600kg | 950kg | |
Machine details
Electric box
Screw metering system
Screw metering system 1
Left 45

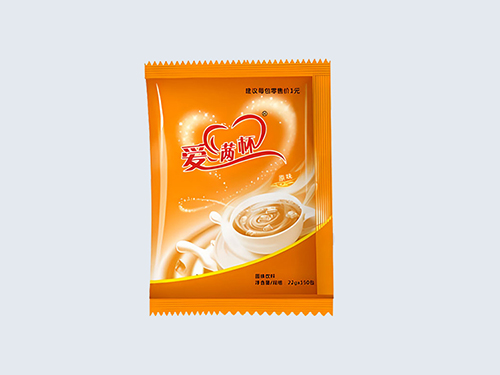

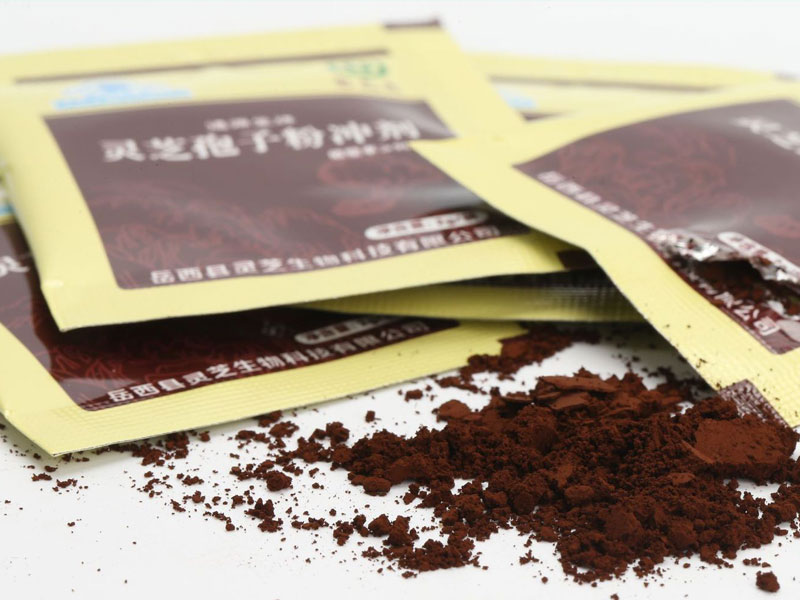

Effect of packaging sample bag
