Product model：CY300BF/CY600BF/CY900BF
Lanes number：2-16 lanes
Bag size：L：50-180mm W：20-105mm
Film width&thickness：Max.300-900mm,0.07--0.1mm
Capacity：Max.20-40cycle/min/lane
Measuring Method：long auger、short auger、short auger with cup
Power supply：50HZ/AC220V/380V/3.5-7.5kw
The traditional Chinese medicine powder packaging machine is a multi column packaging machine for powder and powder type materials. The machine consists of a screw feeding machine and a multi column packaging machine. Its workflow is to pour the materials into a storage hopper, transport the powder materials to the screw measuring device through the screw feeding machine, measure the materials, and then complete the packaging process through steps such as cutting, filling, sealing, cutting, and finished product output.
We can help you find the goods you want by phone
Video presentation

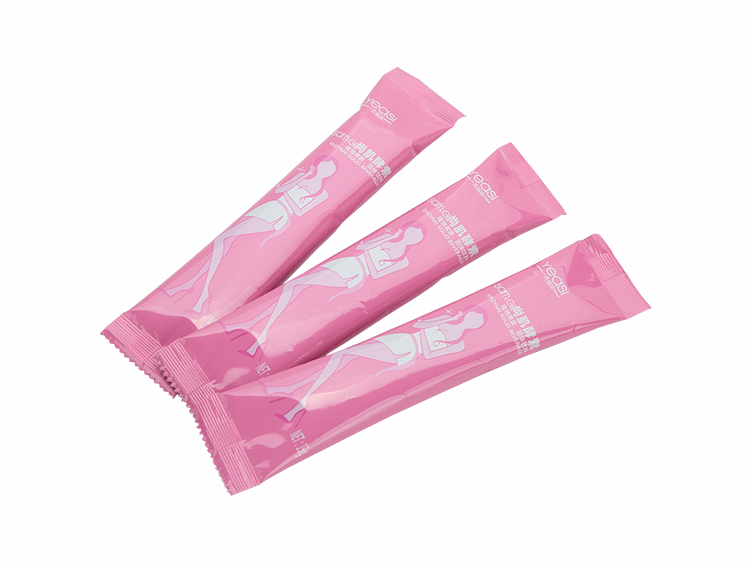

Packaging sample bag
Machine parameters
| Model | CY300BF | CY600BF | CY900BF | |
| Lanes number | 2-4 lanes | 3-10 lanes | 4-16 lane | |
| Capacity | 20--40 /Max.20-40cycle/min/lane | |||
| Bag size | L：50-180mm W：20-70mm | L：50-180mm W：20-95mm | L：50-180mm W：20-105mm | |
| Film width&thickness | Max.300mm,0.07--0.1mm | Max.600mm,0.07--0.1mm | Max.900mm,0.07--0.1mm | |
| Measuring Method | 1、long auger；2、short auger；3、short auger with cup | |||
| Sealing type | Back sealing/stick bag | Back sealing/stick bag | Back sealing/stick bag | |
| Cutting type | 1、平口 Straight cutting；2、Zig zag cutting 3、Round cutting；4、Die-cut | |||
| Power supply | 1N+PE/50HZ/AC220V/380V/3.5kw | 1N+PE/50HZ/AC220V/380V/5.5kw | 1N+PE/50HZ/AC220V/380V/7.5kw | |
| Air consumption | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min | |
| Dimension | 1385*918*2005mm | 1685*1300*2005mm | 1700*1600*2500mm | |
| Weight | 400kg | 600kg | 950kg | |
Detail drawing
