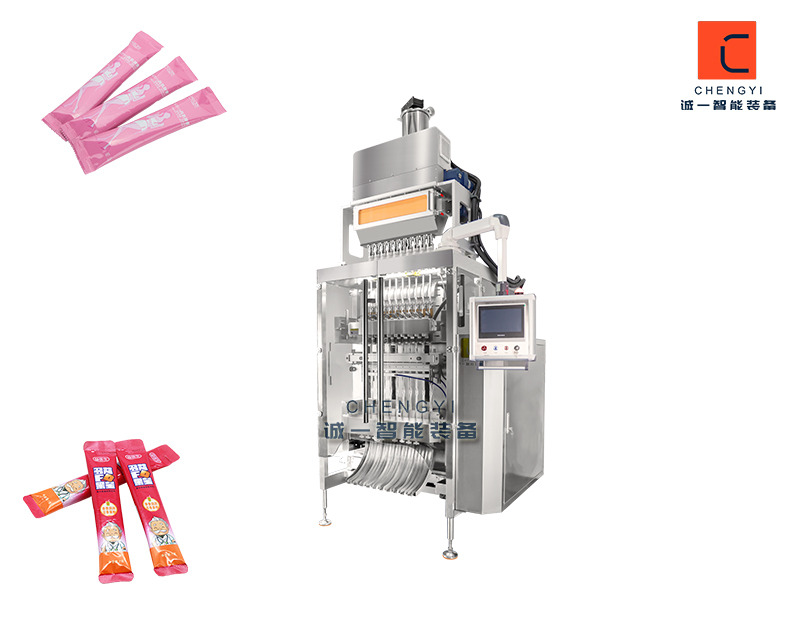

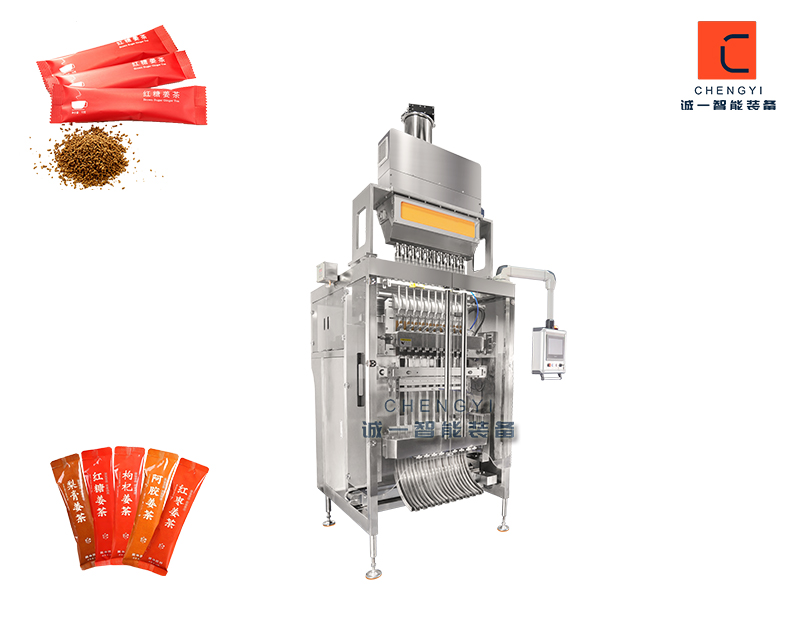

Solid beverage packaging machine

Product model:CY300BK/CY600BK/CY900BK


  Lanes number:2-18lanes

  Capacity:Max.30-50cycle/min/lane

  Bag size:L:45-180mm W:17-105mm

  Film width&thickness:Max.300-900mm,0.07--0.1mm

  Measuring Method:1、Vomuletric cup;2、weigher

  Sealing type:Back sealing/stick bag

  Cutting type:1.Straight cutting;2、Zig zag cutting;3、Round cutting;4、Die-cut

  Power supply:1N+PE/50HZ/AC220V/380V/3.5-7.5kw

  Air consumption:0.8 MPA 0.8m3/min

  Dimension:1385*918*2005mm

  Weight:400kg

  The solid beverage automatic packaging machine is a fully automatic packaging equipment equipped with intelligent computer control, with fast packaging speed, high accuracy, and small errors. The machine body is designed with stainless steel, which will not contaminate the materials when in contact with them. The machine can automatically complete tasks such as quantitative feeding, bag making, filling, counting, sealing, slitting, outputting finished products, labeling, printing, etc.

  The solid beverage packaging machine is suitable for granular products in industries such as medicine, food, daily chemicals, pesticides, and health products, such as sugar, coffee, probiotics, desiccants, salt, laundry detergent, activated carbon, pharmaceutical granules, and granules.


We can help you find the goods you want by phone


Machine video introduction

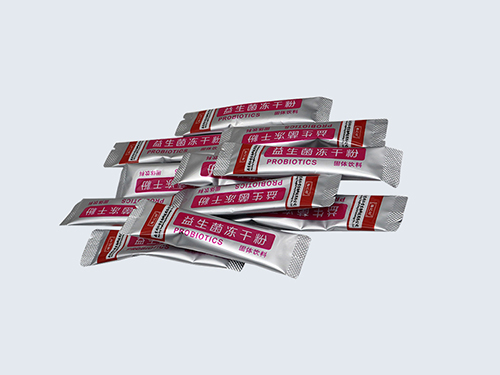

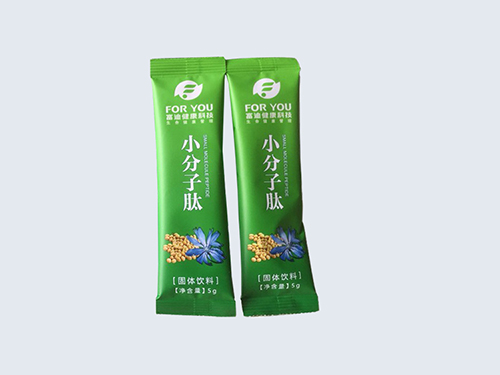

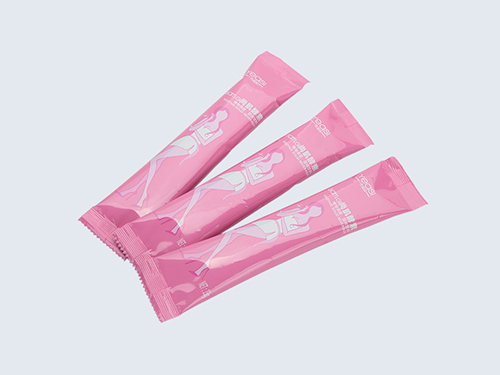

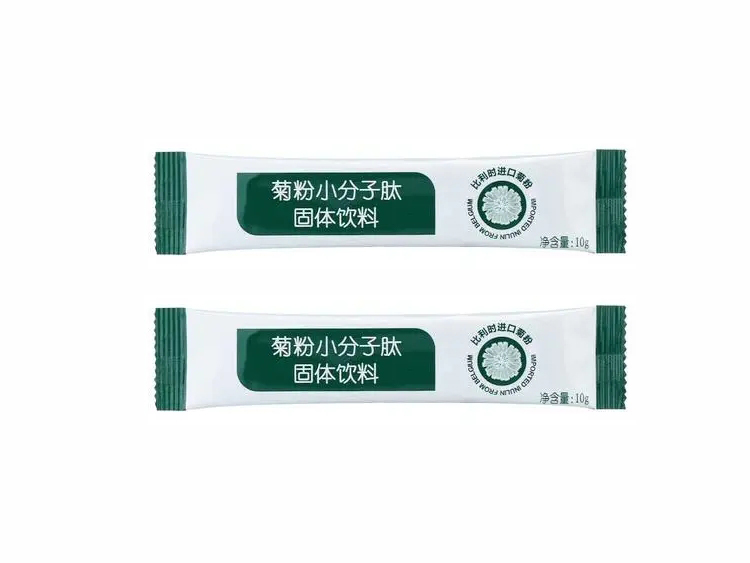

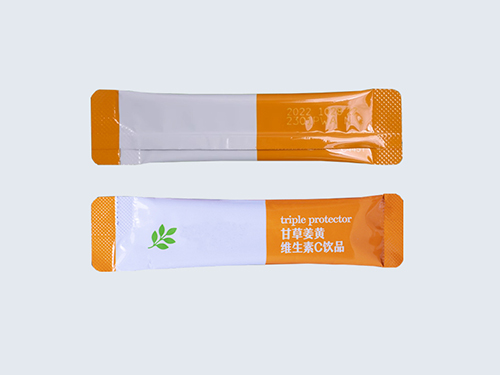

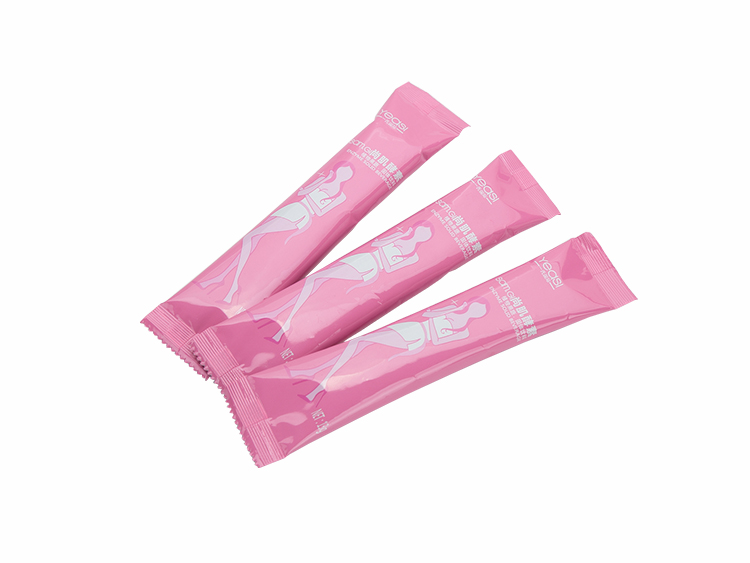

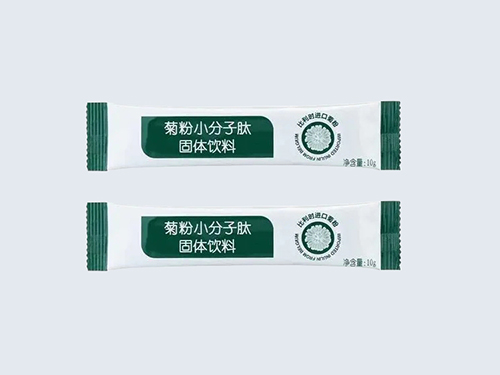

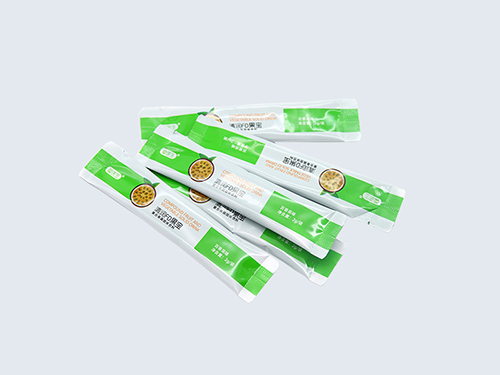

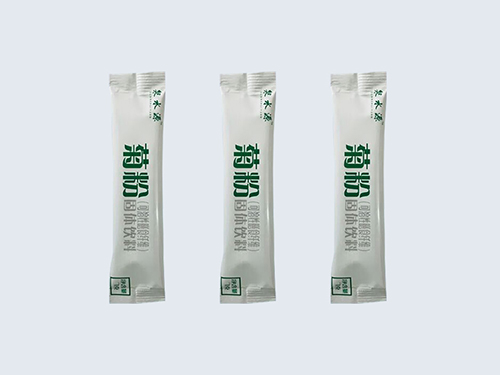

Packaging sample bag

Machine parameters
    Model CY300BK CY600BK CY600BK
    Lanes number 2-6 lanes 3-12 lanes 4-18 lane
Capacity 30--50 / Max.30-50cycle/min/lane
Bag size L 50-180mm  W:17-70mm L::50-180mm  W:17-95mm L::50-180mm  W:17-105mm
Film width&thickness Max.300mm,0.07--0.1mm Max.600mm,0.07--0.1mm Max.900mm,0.07--0.1mm
Measuring Method 1.Vomuletric cup;2.weigher
Sealing type Back sealing/stick bag Back sealing/stick bag Back sealing/stick bag
Cutting type 1. Straight cutting;2. Zig zag cutting 3. Round cutting;4. Die-cut
Power supply 1N+PE/50HZ/AC220V/380V/3.5kw 1N+PE/50HZ/AC220V/380V/5.5kw 1N+PE/50HZ/AC220V/380V/7.5kw
Air consumption 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min 0.8 MPA 0.8m3/min
Dimension 1385*918*2005mm 1685*1300*2005mm 1700*1600*2500mm
Weight 400kg 600kg 950kg

Machine details

電箱

機器側(cè)面

機器側(cè)面1

機器正面

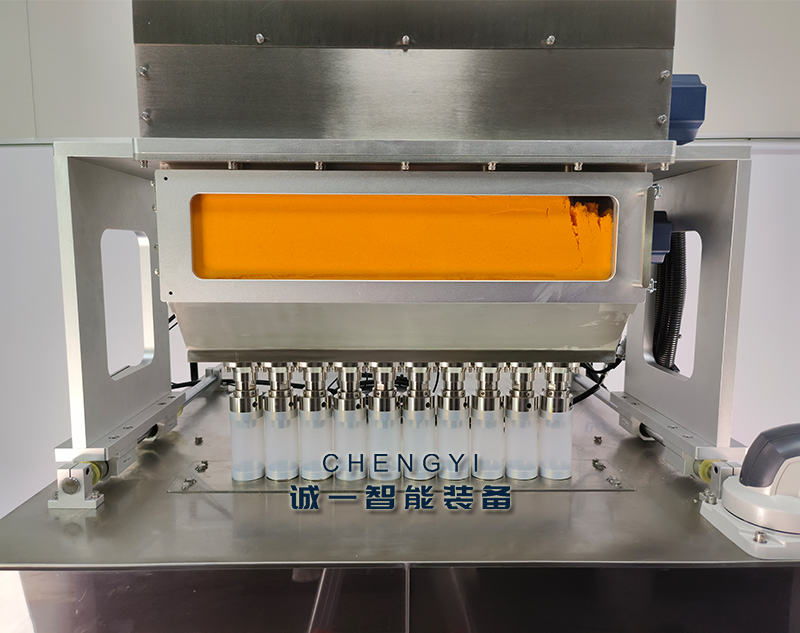

量杯計量系統(tǒng) (1)

料桶

下料軟管通道

真空上料

整機
